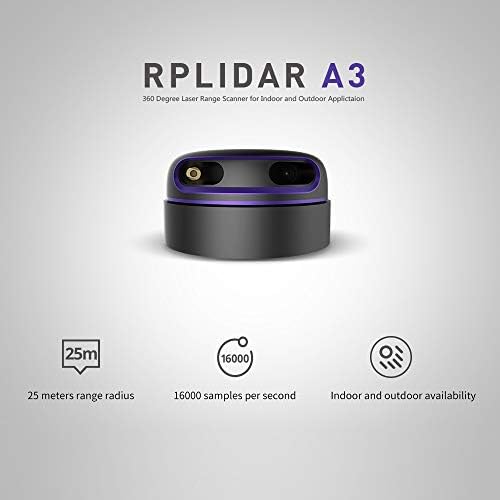

youyeetoo Slamtec RPLIDAR A3 2D 360 Degree 25 Meters scanning Radius & Mute brushless Motor lidar Sensor for Obstacle Avoidance and Navigation of Outdoor AGV Drones
(as of Jan 08,2023 01:48:02 UTC – Details)
[OVERVIEW] PLIDRA A3 supports to work under two modesalternatively: enhanced mode and outdoor mode . In enhanced mode, RPLIDARA3 works with the maximum ranging radius and sampling rate to realize anoptimistic mapping performance in indoor environments. While in outdoormode, RPLIDAR A3 works with a more reliable resistance to daylight interference. Itkeeps its stable performance when detecting white and black objects. RPLIDAR A3 improves the internal optical designand algorithm system to make the sample rate up to 16000 times, which is muchbetter than most competitors. With algorithm optimization, the ranging radiusof RPLIDAR A3 has been increased to 25 meters, which means moreenvironment outline information is to be collected. [Features] The ranging core of RPLIDAR A3 runs clockwise toperform a 360 degree omnidirectional laser range scanning for its surroundingenvironment and then generate an outline map for the environment.Compared with the traditional belt drive mode,RPLIDAR A3 uses the self-designed brushless motor to reduce the mechanicalfriction in running. SLAMTEC has integratedthe wireless power and optical communication technology to self-design theOPTMAG technology, which breakouts the life limitation of traditional LIDARsystem. The RPLIDAR A3 system adopts the low power infraredlaser light as its light source, and drives it by using modulated pulse. Thelaser emits light in a very short time frame which can ensure its safety tohuman and pets. It has already reached Class 1 Safety Standard. [Shipping list] RPLIDAR A3 x1 Switching Module x1 Connection wire x1 [Technical Support] Wiki:http://www.slamtec.com/en/ ExpertSupport : email@example.com Skype live : fuxiang_12
HIGH ACCURACY – This laser scanner series has a sampling rate of 16000 times/s and 25 meters laser ranging distance ,configurable scan rate from 10~20Hz, Typical 15Hz. performs 360 degree omnidirectional laser range scan on the surrounding environment, and generates an outline map.
NDOOR & OUTDOOR AVAILABILITY – RPLIDRA A3 supports to work under two modes alternatively: enhanced mode and outdoor mode .While in outdoor mode, RPLIDAR A3 works with a more reliable resistance to daylight interference.It keeps its stable performance when detecting white and black objects.
OPTMAG ORIGINAL DESIGN – This laser scanner integrates wireless power and optical communication technology with OPTMAG technology, which repairs electrical connection errors due to physical wear and prolong the life-span.
WIDELY APPLICATION – It can be used for home service/cleaning robot navigation and localization, general robot navigation and localization, smart toy’s localization and obstacle avoidance, environment scanning and 3D re-modeling, General simultaneous localization and mapping (SLAM), etc.
