STEAMEMO 28 Port PoE Switch, 24 PoE+ Port@ 360W, 2 Gigabit Uplink, 2*1G SFP, 802.3af/at, Metal Casing 19-inch Rackmount, Overload Protection w/ Port, Unmanaged Plug and Play
(as of Dec 16,2022 09:06:16 UTC – Details)
Auto Detects Power Devices
STEAMEMO 28-Port PoE Switch is compatible with 802.3af/at protocol, PoE Switch determines and delivers the exact power supply to your devices with up to 30W power output.
4 KV Lighting Protection
STEAMEMO PoE switch have professional lightning protection design-up 4KV port and power supply thunder prevents, it can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
LED indicators for each port，Quickly check Working status and troubleshoot ports with lights for each.
Stable Transmission with SFP Port
The PoE switch features two gigabit SFP port, you can use fiber cable to extend your network to larger areas.
Fanless & Silent Operation
28-port PoE switch features with fanless design that ensures noiseless operation and greater reliability over time.
STEAMEMO active POE switchs support passive poe devices&non poe devices, but when the switch is directly connected to passive poe devices or non-poe devices, the switch can only transmit data and cannot power the device, so the device needs to be powered separately. Or use an active poe splitter between the switch and your passive poe device and non-poe device,So that the switch can transmit data and electricity at the same time.
This is very important and must be noted！
Compatible with 802.3af/at protocol
Support active poe devices&passive poe devices&non poe devices
STEAMEMO POE switch is an active POE switch, as shown in the figure, it supports active poe devices, and it can work when connected to your device. It also supports passive poe devices and non-poe devices, But please note: If your device is a passive Poe device or a non-Poe device, the switch can only transmit data and cannot power your device, the connected device needs to be separately powered. Or you can use it with active poe splitter.
28 Port PoE Switch: STEAMEMO Active poe switch support IEEE 802.3af/at compliant. With 24 PoE+ ports(10/100Mbps), 2 gigabit uplink ports and 2 SFP port (1.25G). The 2 gigabit uplink SFP ports support various fiber SFP modules, 2 gigabit ethernet uplink port can provide more bandwidth and connect to different devices, such as routers, NVRs, etc.
360W Higher Poe Power Supply: 24 poe+ ports with 360W high output total power budget, built-in power supply makes installation easier. Each port max power supply reached 30W and 15W in the same time. After connecting to our AC Power Cable, the switch can transmit power to the equipment connected to the switch. Please note: not support passive 24V PoE.
4KV Lightning Protection: STEAMEMO PoE switch have professional lightning protection design-up 4KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which equivalent to give the entire network monitoring system with a security fence.

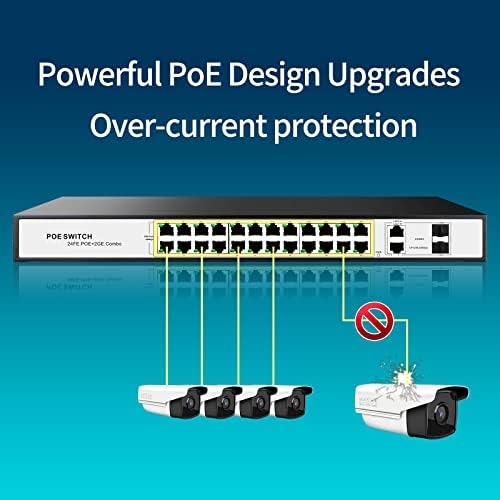

Network Cable Short-Circuit Protection Mechanism: STEAMEMO POE switch is stable and has strong anti-interference ability, protect the fault caused by the short circuit of the network port. When connected devices’ total power consumption is greater than or equal to 360W, lower priority ports are disabled to prevent overloading.
Unmanaged Plug & Play: 24 port poe switch support power detection function, automatically detect devices, can be compatible with non-POE devices to provide data connectivity. Plug and Play, just plug in the power cord, connect the ethernet cable directly to the device, can be used without configuration.
Sturdy Metal Casing and Fanless Design: Sturdy metal casing and powerful industrial-grade fans for better heat dissipation while effectively reducing noise, enabling longer-lasting operation in a variety of temperature environments, making the switch run more stable.
LED Lndicator & Multiple Installation Options: You can quickly check working status and troubleshoot ports with Power/PoE indicator. STEAMEMO poe switch supports desktop, wall or rack placement, and the 19-inch length conforms to more switch racks, giving you more mounting options to fit the switch with your needs.
