Reidubo 8 Port Gigabit PoE Switch with 2 Uplink,1000Mbps PoE Ethernet Unmanaged Network Switch,120W, Plug & Play, VLAN, Suitable for Access Point-AP and PoE Surveillance Camera

- 71%

$54.99

Add to wishlistAdded to wishlistRemoved from wishlist 0


Price: $188.98 - $54.99
(as of Dec 15,2022 06:09:54 UTC – Details)


Product Description

10 Port Gigabit POE Switch10 Port Gigabit POE Switch

10 Port Gigabit POE Switch10 Port Gigabit POE Switch

10 Port Gigabit POE Switch10 Port Gigabit POE Switch

10 Port Gigabit POE Switch10 Port Gigabit POE Switch

10 Port Gigabit POE Switch10 Port Gigabit POE Switch

Ethernet Port
16x1000Mbps 16x1000Mbps 8x1000Mbps 8×100Mbps 4x1000Mbps 4×100Mbps

UpLink Port
2x1000Mbps 2x1000Mbps 2x1000Mbps 2x1000Mbps 2x1000Mbps 2x100Mbps

POE Power Output
250W 400W 120W 120W 75W 75W

Switch Capacity
36Gbps 52Gbps 20Gbps 12Gbps 12Gbps 1.6Gbps

Dimensions (L x W x H)
12.3×7.2×1.8in 12.3×7.2×1.8in 8×5.5×1.8in 7.9×4.7×1.8in 8×5.5×1.8in 7.9×4.7×1.8in

Weight (lbs)
3.5 3.7 1.79 1.55 1.52 1.33

Extend Function

VLAN

Fan Design
Fanless Fanless Fanless Fanless Fanless Fanless

Case Material
Metal Metal Metal Metal Metal Metal

Technical Details

Model P4810D-K(8 PoE Port) PoE Protocol IEEE802.3AF/AT Interface 10*10/100/1000Mbps auto-negotiation RJ45 ports (Auto MDI/MDIX) Dimensions 8×5.5×1.8in Power Supply Input: AC:100-240V; 50/60Hz Output: 52V 2.5A (Built-in Power Supply) Switching Capacity 20Gbps Operating Temperature -14℉~131℉ Lightning protection 4KV Forwarding mode store and forward MAC address 2K PoE Type End-Span Forwarding rate 10BASE-tx:14880PPS/port;100BASE-tx:148800PPS/port;1000BASE-tx:1488000PPS/port; Output power 15.4W/MAX30W Transmission distance ≤100m Power pin 1/2+ 3/6- NO system Unmanaged ,Plug and Play, without software installation or configuration

【Full Gigabit Poe Switch&120W】The Reidubo gigabit PoE ethernet switch with 2-gigabit uplink ports and 8*10/100/1000 Mbps Base-TX RJ45 ports can transmit data and power at the same time. Reidubo network switch offers whole 120W PoE power output but the maximum power for each port is up to 30W.2-gigabit uplink port can connect to NVR, other switches, routers, access point (AP), mesh, wifi 6, etc. A wide range of connection options to meet your various Internet needs.
【Built-in Power Supply & 4KV Lightning protection】Reidubo 10-port gigabit PoE switch built-in power supply (120W). the power adapter is no more needed, which makes the PoE Switch simpler and lighter. Ideal for PoE Security Camera, Access Point, IP Phone, and other PD devices.4KV lightning protection design allows your products and devices to operate stably even in bad weather. Each port can intelligently detect the power required by the device. Normal output 15.4W, maximum output 30W
【Unmanaged Plug and Play &Multiple installations options】Reidubo Gigabit PoE ethernet switch support automatically detects devices.802.3AT/AF standard supported. only plug in the power cord and network cable without software installation or configuration, Supports desktop and wall. There are also keyhole mounts on the bottom if you need to wall mount the unit It can be installed in offices, homes, and businesses, it is a good choice for high bandwidth requirements.
【Intelligent PD Detection& QoS function】The PoE switch will automatically identify whether the device connected to the port needs a power supply. If it is a non-PoE device that does not require power, the power of the port can be automatically turned off, which can protect the non-POE device from damage.  When the PoE switch is transmitting data at full capacity, Quality of Service(QoS) enables POE switches to prioritize the transmission of important content for 1-2 ports.

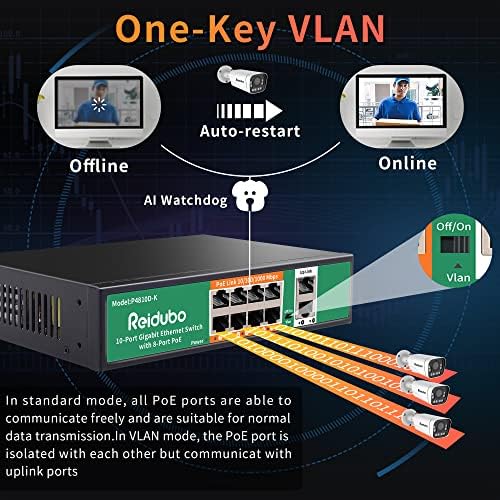

【VLAN Mode】In standard mode, all PoE ports are able to communicate freely and are suitable for normal data transmission. In VLAN mode, the PoE port is isolated from each other but communicate with gigabit uplink ports. If you would like to run multiple devices such as security cameras on the same PoE switch but want to keep them separate, the VLAN mode improves the transmission performance of local network data
【Item Warranty】Reidubo PoE switch is rigorously tested for reliability, quality, and performance. We supply a year warranty for whole products and lifetime technical support.If you have any questions, please contact us and we will get back to you within 24 hours.

Reidubo 8 Port Gigabit PoE Switch with 2 Uplink,1000Mbps PoE Ethernet Unmanaged Network Switch,120W, Plug & Play, VLAN, Suitable for Access Point-AP and PoE Surveillance Camera
Reidubo 8 Port Gigabit PoE Switch with 2 Uplink,1000Mbps PoE Ethernet Unmanaged Network Switch,120W, Plug & Play, VLAN, Suitable for Access Point-AP and PoE Surveillance Camera

$54.99
